2017 Latest DesignDimmable Led Track Light - LED Flood Light-RS PJ 30 COB – Ristar

Short Description:

SCOPE OF APPLICATION： Suitable for Urban Street, Railway, Subway, Under Ground Parking Area, Tunnel, Factory, Workshop, Warehouse, Garage, Stadium, Building Site, Plant Lighting, Building Lighting, Advertisement Lighting. Model power IP Grade Size Chip Material RSPJS-50 50w IP65 270×215×60mm SMD Die cast AL tempered glass RSPJS-100 100w IP65 310×260×80mm SMD Die cast AL tempered glass RSPJS-150 150w IP65 385x330x85mm SMD Die cast AL tempered glass Model p...

Send email to us Download as PDF

Product Detail

Product Tags

Feedback (2)

Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction for 200w Ufo Led High Bay Light , Cob Led Flood Light , High Bay Light Cover , Let's cooperate hand in hand to jointly make a beautiful upcoming. We sincerely welcome you to pay a visit to our company or speak to us for cooperation!

2017 Latest DesignDimmable Led Track Light - LED Flood Light-RS PJ 30 COB – Ristar Detail:

Model	power	IP Grade	Size	Chip	Material
RSPJS-50	50w	IP65	270×215×60mm	SMD	Die cast AL tempered glass
RSPJS-100	100w	IP65	310×260×80mm	SMD	Die cast AL tempered glass
RSPJS-150	150w	IP65	385x330x85mm	SMD	Die cast AL tempered glass

Model	power	IP Grade	Size	Chip	Material
RSPJC-50	30w	IP65	220×180×45mm	COB	Die cast AL tempered glass
RSPJC-50	50w	IP65	285×235×50mm	COB	Die cast AL tempered glass
RSPJS-100	100w	IP65	330x280x65mm	COB	Die cast AL tempered glass

Model	power	IP Grade	Size	Weight	Material
RS-PJ022	60W80W120W150W	IP66	418×288×75mm	3.8kg	ADC12
RS-PJ024	200W250W800W	IP66	518×327×95mm	6.8kg	ADC12

Model	power	IP Grade	Size	Weight	Material
RS-PJ0345	30W45W	IP66	326×130×197mm	3.8kg	ADC12
RS-PJ0375	60W75W	IP66	437×234×197mm	5.4kg	ADC12
RS-PJ03120	100W120W	IP66	561x329x197mm	9.3kg	ADC12

Model	power	IP Grade	Size	Woight	Material
RS-PJ0460	60W	IP66	135X290X125mm	2.3kg	AL6063
RS-PJ04120	120W	IP66	210X 290X 125mm	3.4kg	AL6063
RS-PJ04180	180w	IP66	290X 290X 125mm	4.3kg	AL6063
RS-PJ04240	240W	IP66	370x 290x 125mm	5.3kg	AL6063
RS-PJ04300	300W	IP66	450X 290X 125mm	6.4kg	AL6063

Model	Power	IP Grade	Size	Weight	Material
RS-PJ051	40W 50W	IP66	80x260X153mm	1.6kg	ADC12
RS-PJ052	80W 100W	IP66	200x260x153mm	2.2kg	ADC12
RS-PJ053	120W 150W	IP66	276X 260x153mm	2.9kg	ADC12
RS-PJ054	160W 180W	IP66	380X260X153mm	3.7kg	ADC12
RS-PJ055	200W 250W	IP66	462X20x153mm	5.3kg	ADC12
RS-PJ056	300W	IP66	276x556X153mm	6.4kg	ADC12
RS-PJ058	400W	IP66	370x556X153mm	8.0kg	ADC12
RS-PJ0510	500W	IP66	462X556X153mm	9.6kg	ADC12
RS-PJ0521	1000W	IP66	653X790x153mm	22.5kg	ADC12

Model	Power	IP Grade	Size	Weight	Material
RS-PJ0642	42W	IP66	375X310X80mm	3.7kg	AL6063
RS-PJ0656	56W	IP66	435X310X80mm	4.5kg	AL6063
RS-PJ0670	70W	IP66	485X305X70mm	5.4kg	AL6063
RS-PJ0684	84W	IP66	555X310X80mm	6.3kg	AL6063
RS-PJ0698	98W	IP66	615X310X80mm	7.1kg	AL6063
RS-PJ06112	112W	IP66	675x310X80mm	8.0kg	AL6063
RS-PJ06126	126W	IP66	735X310X80mm	8.9kg	AL6063
RS-PJ06140	140W	IP66	795x310X80mm	9.8kg	AL6063

Model	Power	IP Grade	Size	Weight	Material
RS-PJ0730	30W 48W	IP66	270X 180x 60mm	1.7kg	ADC12
RS-PJ0760	60W 80W	IP66	430X 180x 60mm	2.8kg	ADC12
RS-PJ0790	90W 100W	IP66	500x 180X60mm	3.9kg	ADC12

COB:
1.Heavy aluminum body radiator design, better heat radiation effect.

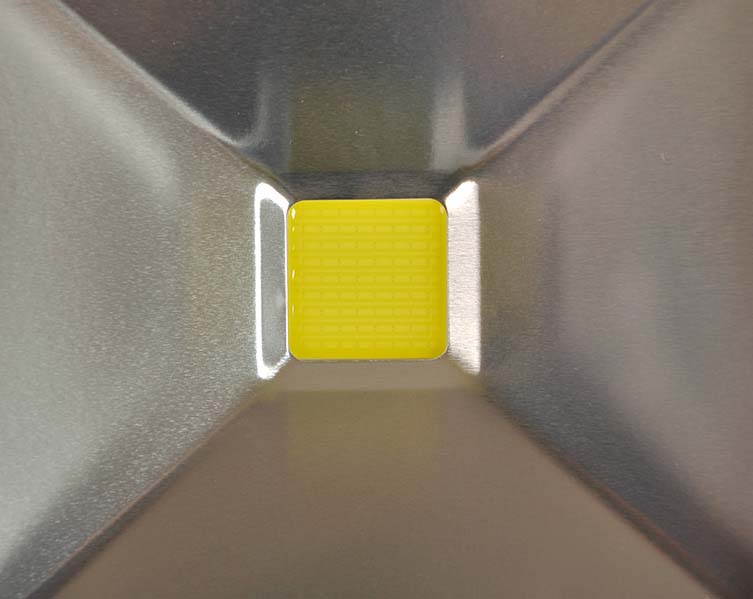

2.High quality COB chip with ceramic PCB which provides better thermal conductivity and superior heat radiation performance
3.Tempered glass, provides high light transmittance and strong protection for chip
4.No UV or near-IR radiation in the light beam.
5.Easy installation, adjustable stand allows you to point light at any angle.
6.IP65, ideal for indoor and outdoor application
7.Long lifespan.

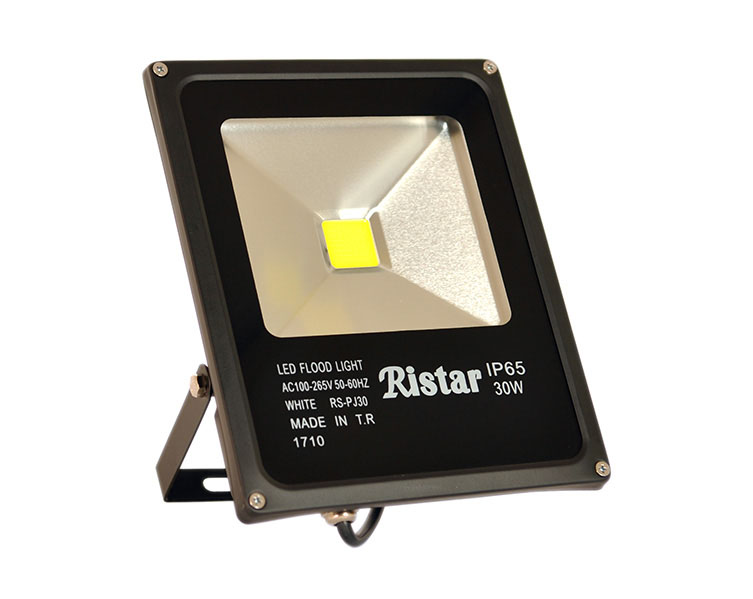

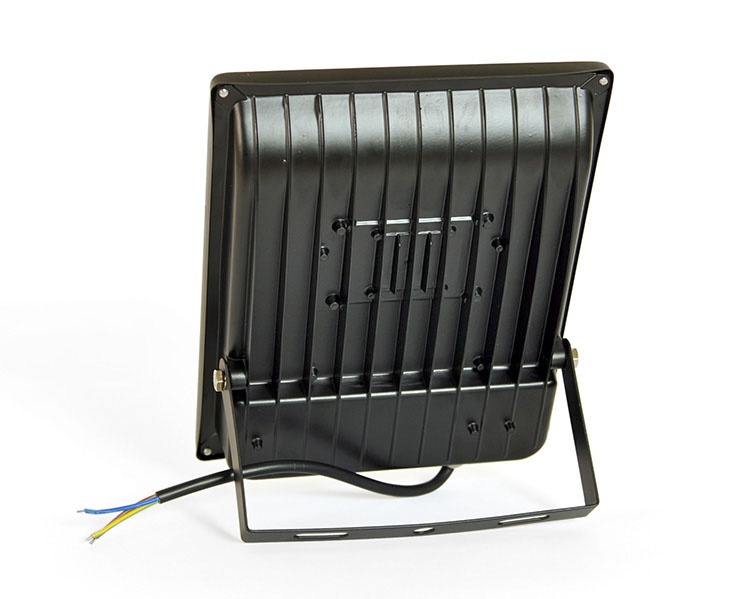

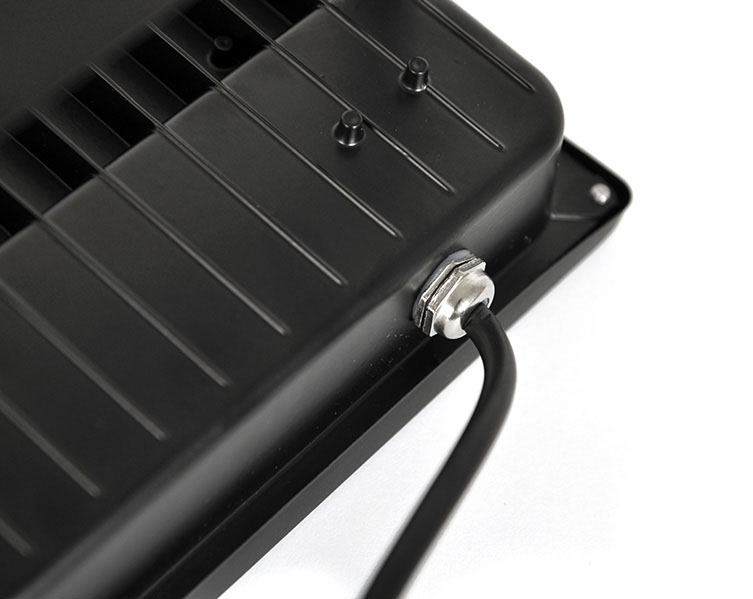

Product detail pictures:

We always continually offer you the most conscientious purchaser services, and the widest variety of designs and styles with finest materials. These efforts include the availability of customized designs with speed and dispatch for 2017 Latest DesignDimmable Led Track Light - LED Flood Light-RS PJ 30 COB – Ristar, The product will supply to all over the world, such as: Guyana , venezuela , European , We take measure at any price to attain essentially the most up-to-date gear and procedures. The packing of nominated brand is our a further distinguishing feature. The solutions to assure years of trouble-free service has attracted a great deal customers. The goods are obtainable in improved designs and richer variety, they're produced scientifically of purely raw supplies. It accessible in a variety of designs and specifications for the selection. The newest forms are much far better than the previous one and they're extremely popular with several clients.
